Data Management Applications

E.164 Number Mapping

Cut Costs with Intelligent Telephone Number Mapping

Enea ENUM (Telephone Number Mapping) is a turnkey solution providing a bridge between the mobile network and the internet.

Delivering E.164 Number mapping for VoLTE use cases and DNS lookup capability at it’s core.

It allows network operators to save capital and operational expenditure, and helps overcome the challenges associated with building and operating heterogeneous multi-vendor networks across different technological domains.

One of the challenges is to support telecom services that are provided over the internet and other networking technologies. Services such as VoIP, VoLTE, and VoWiFi have become increasingly popular in addition to a wide range of other voice and messaging services. Still, subscribers expect to be reachable via a single phone number and operators simply have to fulfill this requirement to stay competitive.

Cost Savings

The implementation offers a substantial reduction of capital and operational expenditure.


Full support for interoperability between addressing schemes of different domains

Cloud-Native Design

Available for cloud-based implementations to accommodate all capacity and scalability requirements

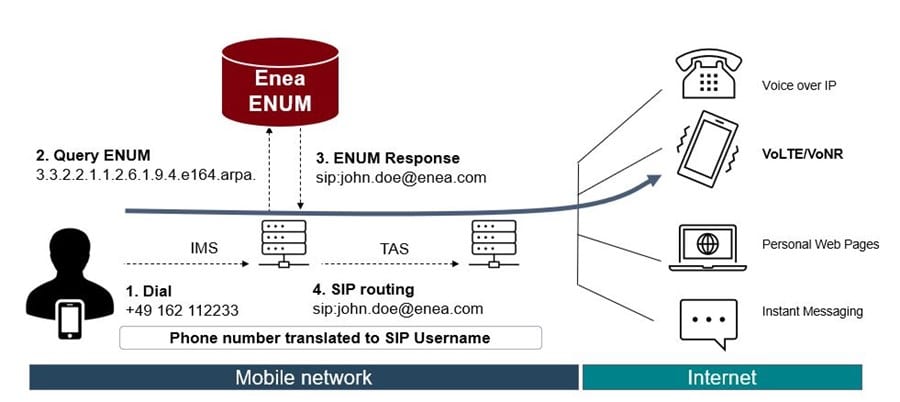

The Enea ENUM solution makes this possible with a very short time-to-market. The solution is based on standard subscriber phone numbers (ie the E.164 format) that are automatically mapped to Universal Resource Identifier (URI) sets for provisioning of the services concerned. For example, the Enea ENUM will translate a mobile network number (MSISDN) to a Session Initiation Protocol (SIP) address that is used to route calls in VoIP networks (IMS/VoLTE) as illustrated below.

The main benefits of implementing the Enea ENUM solution are related to reduced capital and operational expenditure. The cost savings can be realized as the solution includes a standard-compliant DNS server, which supports a variety of other DNS resource record types (e.g. A/AAAA, NAPTR, S-NAPTR, CNAME, MX, NS, TXT, PTR) to allow name resolution for IMS network elements. The fact that most maintenance activities can be carried out while the product is in operation, without any impact on subscriber services, is also an important factor.

The ENUM IWF supports access to other network elements via SS7/SIGTRAN MAP protocol. By means of the ENUM IWF it is possible to interrogate network elements (a Number Portability database or HLR) via the MAP protocol and to provide this information (Cell ID) to the requesting network elements (CSCF, MGCF) via the DNS/ENUM interface. The ENUM IWF is an optional feature additional to the existing ENUM server functionality.

Moreover, the Enea ENUM can also be used as a (Mobile) Number Portability DataBase NPDB if plain ENUM data is sufficient. Using the ENUM database as NPDB provides synergy effects meaning no cost intensive investments for the operator are necessary by extending of the existing network infrastructure.

The Enea ENUM solution is based on a framework that supports a range of protocols and telecom applications. The framework does not only meet the functional requirements but also provides outstanding performance, scalability, and robustness. The solution can easily be adapted to the individual needs and requirements of a specific network environment or virtualized deployment (e.g. OpenStack and VMware). In short, it is future-proof and standard-compliant, and it has been deployed by a number of Tier 1 operators across the world.

Key features:
  • Cost-effective and standard-compliant ENUM solution with high performance and excellent scalability in terms of throughput and capacity (up to 4 sites and several 100 million records)
  • Excellent operability – most maintenance activities can be carried out without any impact on subscriber services
  • Support for interoperability and convergence between CS-based networks (PSTN/ISDN/GSM) and IP-based networks
  • Possibility for subscribers to use only one contact address (the E.164-number) for different services that are distributed across different domains
  • Supports XXL configurations with more than 400 million subscribers based on the Enea ENUM Dispatching Server and the ENUM Multi-Node design
  • Mature and reliable framework supporting virtualization (VMware, OpenStack) and cloud-based implementation or bare-metal deployments
  • Opportunity for rapid assessment, adaptation, and deployment in live network through proof-of-concept approach
